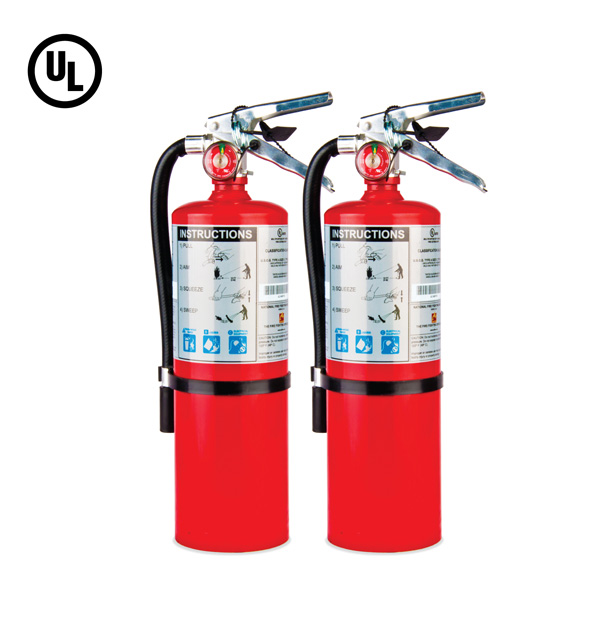

Portable Dry Powder Fire Extinguishers - UL Listed
DESCRIPTION
SPECIFICATION
FEATURES
DESCRIPTION
Ur stored pressure type dry powder extinguishers are characterised by their high performance, simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involving freely burning materials, petrol, oil, gas and electrical equipment. They are ideal for vehicle & marine risks. NAFFCO ABC powder extinguishers contain high performance powder and are one of the most powerful powder extinguishers in the world.
SPECIFICATION
| Model Number | N 05LP | N 10LP | N 20LP |
|---|---|---|---|
| Agent Capacity | 5 lb. (2.27 Kg) | 10 lb. (4.54 Kg) | 20 lb. (9.07 Kg) |
| UL Rating | 2-A:20-B:C | 4-A:80-B:C | 10-A:120-B:C |
| Discharge Time | 14 Sec | 22 Sec | 27 Sec |
| Range (FT/M) | 12-18 / 3.7-5.5 | 15-21 / 4.6-6.4 | 15-21 / 4.6-6.4 |
| Operating Pressure | 195 psi (1344 kPa) | 195 psi (1344 kPa) | 195 psi (1344 kPa) |
| Minimum Operating Temperature | -65°F | -65°F | -65°F |
| Bracket | Wall | Wall | Wall |
| USCG Approval | Type A size II, Type B:C size I | Type A size II, Type B:C size II | Type A size II, Type B:C size III |
| Ship Weight | 10 lb. (4.5Kg) | 18.25 lb. (8.3 Kg) | 33.5 lb. (15.2 Kg) |
| Unit Height | 16.375 in (41.6 cm) | 21 in (53.3 cm) | 21.25 in (53.8 cm) |
| Unit Width | 7.25 in (18.4 cm) | 7.75 in (19.7 cm) | 8.75 in (22.2 cm) |
| Unit Diameter | 4.25 in (10.8 cm) | 5.125 in (13 cm) | 7.5 in (19.1 cm) |
| Cylinder Material | Steel Sheet | ||
| Approval | UL Approved | ||
FEATURES
- ABC Dry Chemical is a multipurpose extinguishing agent that is suitable for use on Class A, Class B and Class C fires.
- TYPICAL USES: For public areas such as offices, classrooms, parking garages, and hotel/motel assembly halls and guest areas. For businesses such as retail stores, light manufacturing facilities, research facilities, auto dealerships, vehicle/aircraft/marine service centers, and manufacturing processes such as painting, dipping, and coating.
- Not suitable for use on fires involving cooking oil and grease. Not recommended for use on sensitive electronic equipment or aircraft structure.
- Dry Powder Extinguishers are USCG approved (Marine Application)
