Certified Diesel Engine
DESCRIPTION
SPECIFICATION
DESCRIPTION

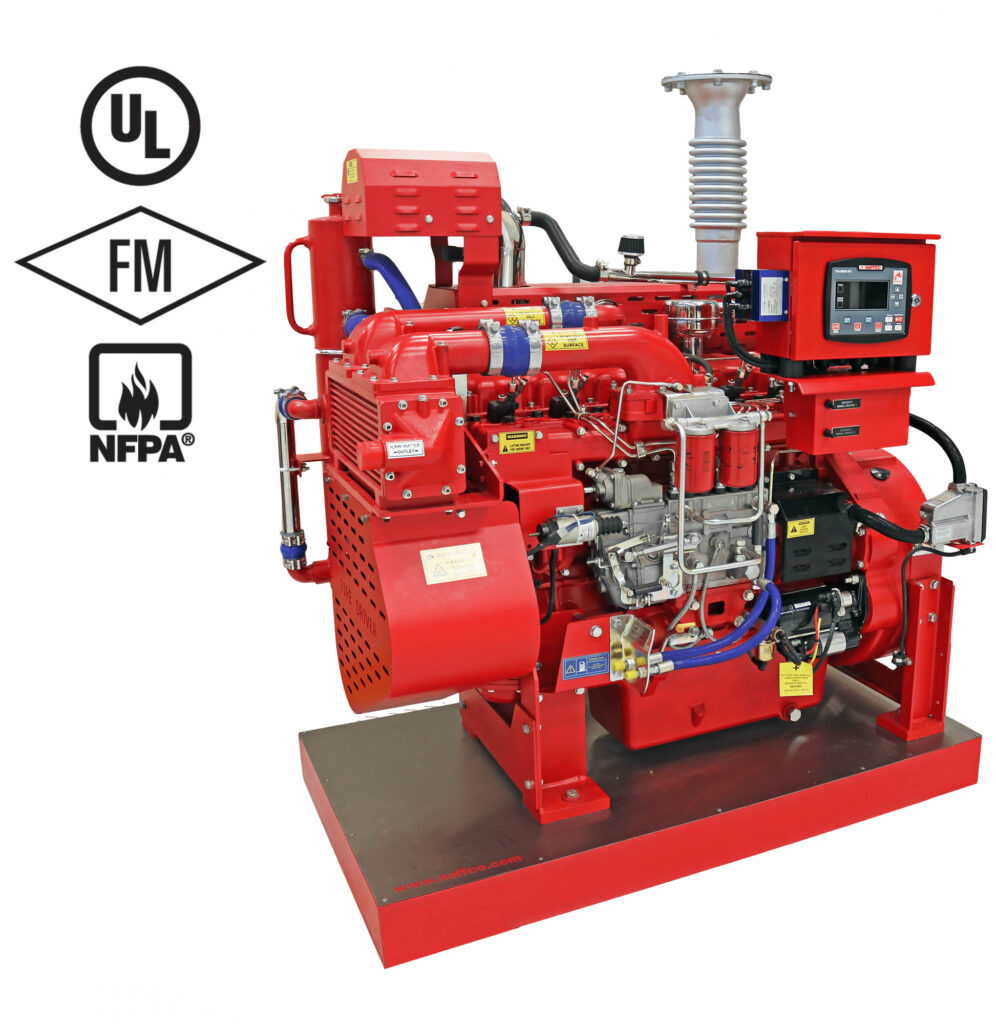

Fire Driver® diesel engines are specially designed and manufactured for fire fighting applications according to UL1247 standard. The better torque characteristics of these engines ensure reliable operation in emergency conditions. These engines are UL listed and comply with the requirements for diesel engine drives as detailed in NFPA 20.
Engines are run tested at the factory prior to the dispatch to ensure that they meet the certified performance ratings.
SPECIFICATION
| Engine Model | Rated Power | Listing / Approval | Rated Speed |
|---|---|---|---|
| FD 30H | 18 hp | FM | 2800 rpm |
| 19 hp | UL / FM | 2900 rpm | |
| 19 hp | FM | 3000 rpm | |
| FD 50H | 30 hp | FM | 2800 rpm |
| 36 hp | UL / FM | 2900 rpm | |
| 40 hp | FM | 3000 rpm | |
| FD 80H | 46 hp | FM | 2800 rpm |
| 50 hp | UL / FM | 2900 rpm | |
| 60 hp | FM | 3000 rpm | |
| FD 80R | 50 hp | UL | 2900 rpm |
| FD 110R | 87 hp | UL | 2900 rpm |
| FD 95H | 95 hp | UL | 2900 rpm |
| FD 140H | 124 hp | FM | 2800 rpm |
| 127 hp | UL / FM | 2900 rpm | |
| FD 175H | 170 hp | FM | 2800 rpm |
| 170 hp | UL / FM | 2900 rpm | |
| 172 hp | FM | 3000 rpm | |
| 175 hp | UL | 3000 rpm | |
| FD 180H | 185 hp | UL | 2900 rpm |
| FD 190H | 176 hp | FM | 2800 rpm |
| 190 hp | UL / FM | 2900 rpm | |
| FD 225H | 225 hp | UL | 2900 rpm |
| FD 250H | 250 hp | UL / FM | 2950 rpm |
| 255 hp | UL | 3000 rpm | |
| 194 hp | FM | 2800 rpm | |
| 250 hp | FM | 3000 rpm | |
| FD 325H | 310 hp | UL | 2900 rpm |
