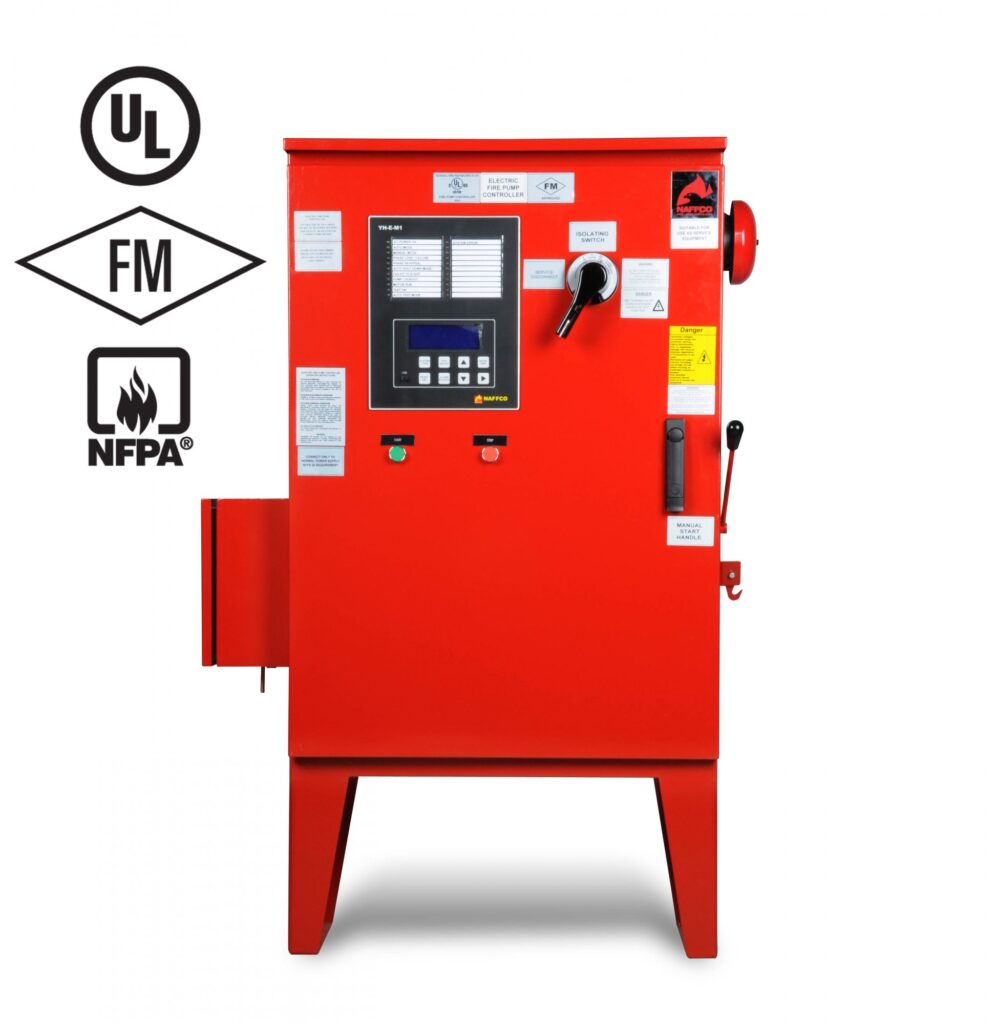

Certified Electric Fire Pump Controllers
Ur Microprocessor Based Electric Motor Controllers for fire pumps are listed by Underwriters Laboratories (UL file number EX15064), in accordance with UL 218 (Standard for Fire Pump Controller), UL 508a (Standard for Industrial Control Panel), NFPA 20 (National Fire Protection Association Pamphlet 20- Standard for Centrifugal Fire Pumps), NFPA 70 (National Electric Code) and NEMA standards.
Also approved by FM approvals (Factory Mutual), in accordance with FM standard 1321 / 1323 (Standard for Fire Pump Controller).
Power ratings vary from 40 to 400 horsepower, 230 / 380 / 415 VAC, 50/60 Hz.
Only high quality UL listed or UL recognized components are used in these panels to guarantee the best possible reliability. Also high quality UL listed enclosures are used
This controller is completely wired, assembled, programmed and tested at the factory before shipment, and ready for immediate installation.
They are suitable for multipurpose application of fires involving free burning materials, flammable liquids, flammable gases and electrical equipment.
Effective for Class A, B, C & Electrical fires
MODEL – STARTING TYPE
- NFY-DOM1 – Direct On Line
Motor Power (HP) Rated Voltage (V) Frequency (Hz) Rated
Current (A)Short Circuit
Current (kA)15 380 – 415 50 / 60 27 100 20 34 25 44 30 51 40 66 50 83 60 103 75 128 100 165 125 208 150 240 200 320 250 403 300 482 350 560 400 636
NFY-SDM1 – Star Delta Open Transition
| Motor Power (HP) | Rated Voltage (V) | Frequency (Hz) | Rated Current (A) | Short Circuit Current (kA) |
|---|---|---|---|---|
| 15 | 380 – 415 | 50 / 60 | 27 | 100 |
| 20 | 34 | |||
| 25 | 44 | |||
| 30 | 51 | |||
| 40 | 66 | |||
| 50 | 83 | |||
| 60 | 103 | |||
| 75 | 128 | |||
| 100 | 165 | |||
| 125 | 208 | |||
| 150 | 240 | |||
| 200 | 320 | |||
| 250 | 403 | |||
| 300 | 482 | |||
| 350 | 560 | |||
| 400 | 636 |
NFY-SSM1 – Soft Starter
| Motor Power (HP) | Rated Voltage (V) | Frequency (Hz) | Rated Current (A) | Short Circuit Current (kA) |
|---|---|---|---|---|
| 15 | 380 – 415 | 50 / 60 | 27 | 100 |
| 20 | 34 | |||
| 25 | 44 | |||
| 30 | 51 | |||
| 40 | 66 | |||
| 50 | 83 | |||
| 60 | 103 | |||
| 75 | 128 | |||
| 100 | 165 | |||
| 125 | 208 | |||
| 150 | 240 | |||
| 200 | 320 | |||
| 250 | 403 | |||
| 300 | 482 | |||
| 350 | 560 | |||
| 400 | 636 |
AUTOMATIC POWER TRANSFER SWITCH
- NFY-ATS – Auto Transfer Switch
Power Rating 15 – 400 HP Frequency 50/60 Hz Rated Voltage 380 – 415 V
