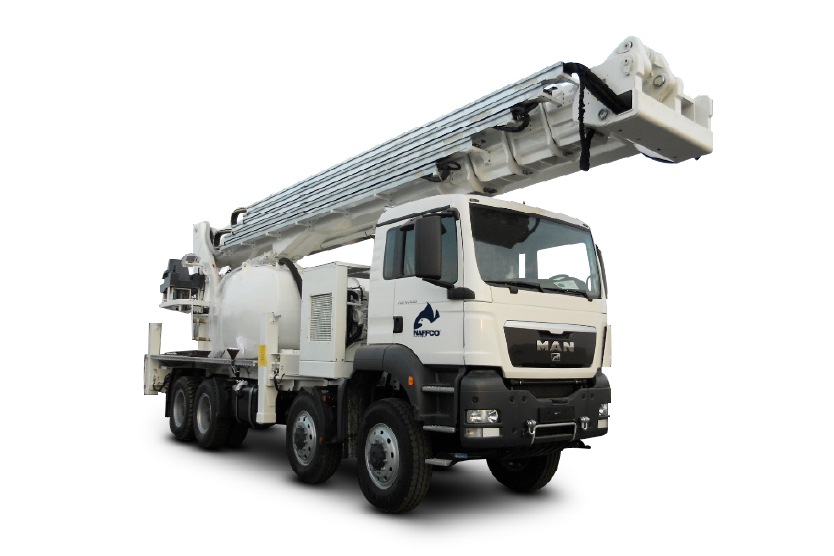

LIVE LINE INSULATOR WASHER
DESCRIPTION
DESCRIPTION
CONCEPT
When high voltage working Insulators are contaminated from the environment deposits such as sand, dirt, dust, salt, industrial smoke, cement, etc., it causes leakage of electric current with risk of flashover and thus consequent loss of supply. The best and only solution is to wash these insulators.
TECHNOLOGY
- With the CPSE (Constant Pressure and Separate Engine) system the normal tap water at high pressure is atomized and cleans the surface. The equipment fully complies with new edition of IEEE-957 / 2005 and provides compliance to IEC 61472 with minimum approach distances.
- State-of-art safety Technology implemented to prevent Flashover.
TECHNICAL SPECIFICATIONS
Model IW 265 Rotation 700° Working Height 67.0m (at nozzle outlet) Rated Washing Point 65.0m @ 20.00m Horizontal Outreach 25.0m (at nozzle output @ 45.0m height) Maximum Gradient 15% as per IEC Maximum Slide Slope 10% as per IEC Stability Coefficient >10% as per IEC Water Tank Capacity 7,000 – 10,000 liters Water Flow 240 liters/min Water Pressure 70 bar (Recommended for operation) Mounted on GVW 48t – 8×8 Heavy Duty
